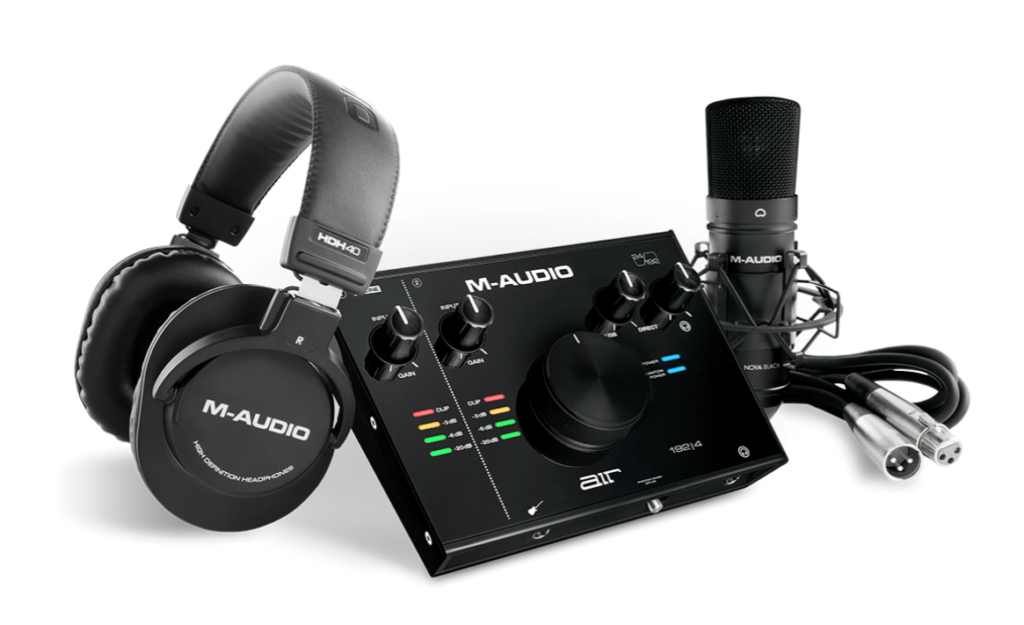

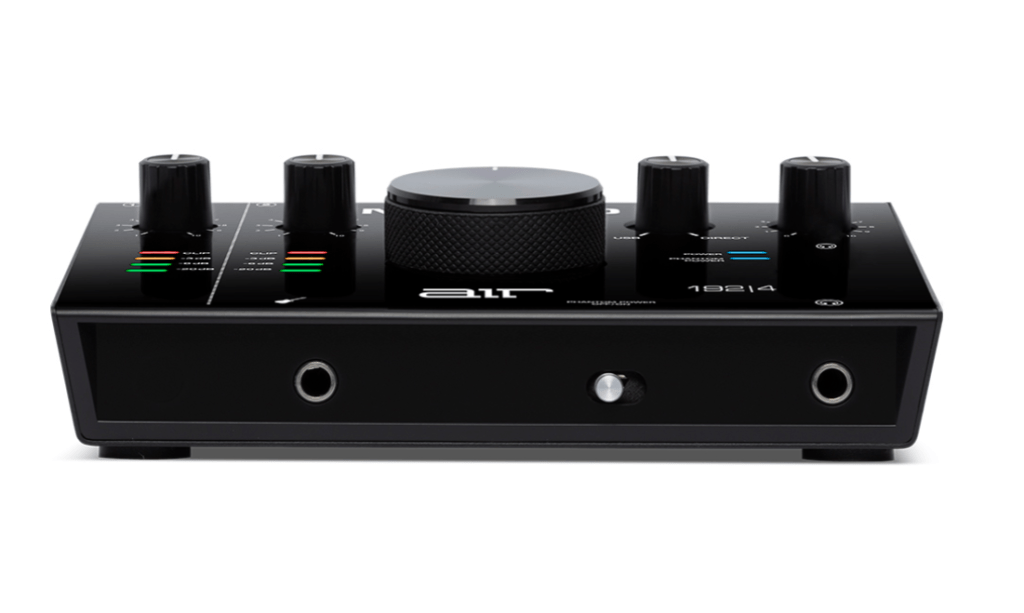

M-AUDIO AIR 192|4 Vocal Studio Pro

Specifications
All specifications are measured at 20 kHz bandwidth. Specifications are subject to change without notice.

Minimum System Requirements
macOS: 10.8 Class Compliant

PC: Windows 7, Windows Driver

Standard USB 2.0 or USB-C Port

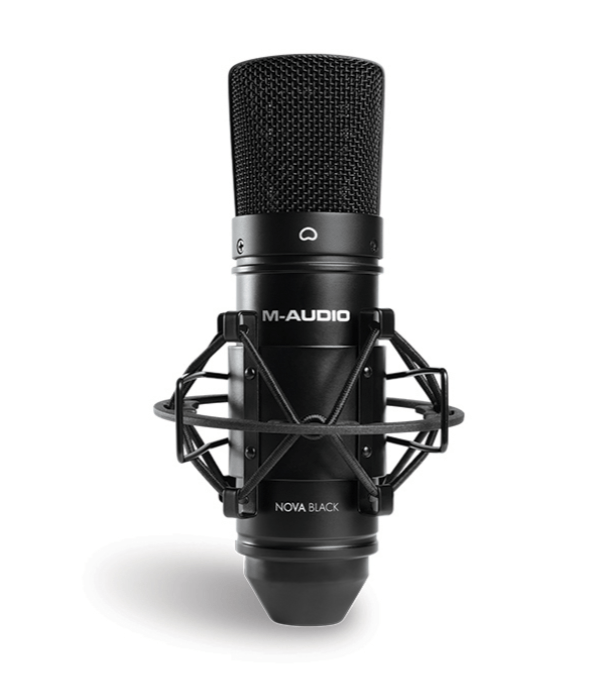

NOVA Black Microphone
TYPE Back Electret condenser microphone
ELEMENT 18 mm pure aluminum diaphragm capsule
POLAR PATTERN Cardioid

FREQUENCY RESPONSE 20 Hz – 20 kHz
SENSITIVITY -38 dB (0 dB = 1 V/Pa @ 1 kHz)
RATED IMPEDANCE 200Ω
MAXIMUM SPL 136 dB
PHANTOM POWER REQUIRED +48 V
S/N RATIO 77 dB
CURRENT CONSUMPTION 3 mA
HDH40 Headphones
ACOUSTIC DESIGN Dynamic, Closed
DRIVER 40 mm, neodymium
FREQUENCY RESPONSE 15 Hz – 22 kHz
SENSITIVITY 95 dB ±3 dB
RATED IMPEDANCE 32Ω
EARPAD Leatherette
CABLE LENGTH 9.8 ft. / 3 m
Mic Input 1 (balanced XLR)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.1 dB)
DYNAMIC RANGE 104 dB (A-weighted)
SIGNAL-TO-NOISE RATIO 104 dB (+1.0 dBu, A-weighted)
THD+N 0.003%
PREAMP EIN -128 dBu (max gain, 150 Ω source, A-weighted)
MAX INPUT LEVEL +1.5 dBu
GAIN RANGE 55 dB
Line Input 1 (balanced 1/4″ [6.35 mm] TRS)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
SIGNAL-TO-NOISE RATIO 101 dB (1 kHz, +4 dBu, A-weighted)
THD+N 0.003%
MAX INPUT LEVEL 16 dBu
GAIN RANGE 55 dB
Inst Input 2 (unbalanced 1/4″ [6.35 mm] TS)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
DYNAMIC RANGE 100 dB (A-weighted)
SIGNAL-TO-NOISE RATIO 102 dB (+ 4 dBu, A-weighted)
THD+N 0.004%
MAX INPUT LEVEL 6 dBu
INPUT IMPEDANCE 1 MΩ
GAIN RANGE 24 dB
Main Outputs, L and R (impedance-balanced 1/4″ [6.35 mm] TRS)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.06 dB)
DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO 102 dB (A-weighted)
THD+N 0.005%
MAX OUTPUT LEVEL +7 dBu (1 kHz, -1 dBFS)
Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
THD+N 0.005%
OUTPUT IMPEDANCE 10 Ω
General
POWER USB-bus-powered
DIMENSIONS (WIDTH X DEPTH X HEIGHT) 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
WEIGHT 2.0 lbs. 0.9 kg
